Discovery Photos

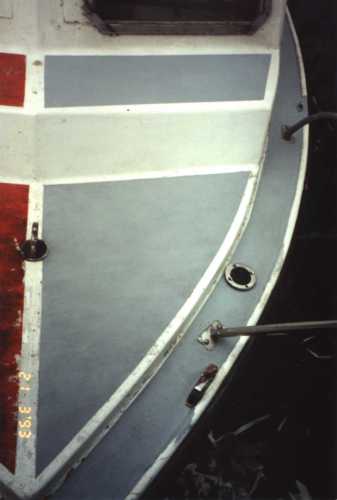

March 1993 - The new grey deck paint. The white was done later
Back to top of page

I enclosed and sealed the compartment with aluminium panels the covered with specially designed sound insulation material, designed for such installations on the sides and top (top after this picture was taken).

May 1993 - The engine compartment. The engine was out being serviced & cleaned at this point.
Previously there was nothing between the engine and the inside except the rather insufficient bulkhead midships.

The compartment still had adequate ventilation through it's pre-existing port & starboard vents. All this reduced the engine noise throughout the boat and eliminated any risk of escaping fumes getting into the boat.

Sorry the picture is in black & white, I was feeling a bit "off colour" :)
Back to top of page

August 1993 - The original helm. This shows my some-what unusual framework.
I used a galvanised steel frame because I thought it would be the strongest and easiest material for me to work with. You might argue that it would be too heavy, but far from it - when completed I tested it and found that Discovery can tip to over 45degrees from vertical and still easily right herself.

You'll also see the custom cut hardwood beam across in front of the helm position, this is ready for the new cockpit windows.
